Product Information
Explore detailed specifications and features
This throttle body is designed for GM 3.0L and 3.6L High Feature V6 engines (LF1, LLT, LY7). Please verify your original OE number before ordering. Not compatible with 2.4L 4-cylinder, 3.6L Twin-Turbo (LF3/LF4), or diesel engines. The 72mm bore is the factory specification for these applications.
This part is for GM 3.0L LF1 and 3.6L LLT/LY7 High Feature V6 engines ONLY. It will NOT fit:
- 2.4L 4-cylinder Ecotec engines (different throttle body)
- 3.6L Twin-Turbo V6 (LF3/LF4) (different calibration)
- Older 3.6L LY7 without electronic throttle (rare – verify)
- Diesel engines
- Any non-GM vehicles without verification
- Confirm your vehicle is equipped with the 3.0L LF1 or 3.6L LLT/LY7 High Feature V6 engine. Not compatible with 2.4L 4-cylinder, 3.6L Twin-Turbo (LF3/LF4), or diesel engines.
- Check your vehicle model and year against the fitment table (Cadillac CTS/SRX/STS; Buick LaCrosse; Chevrolet Camaro/Equinox; GMC Terrain).
-
Locate the original part number on your existing throttle body – look for

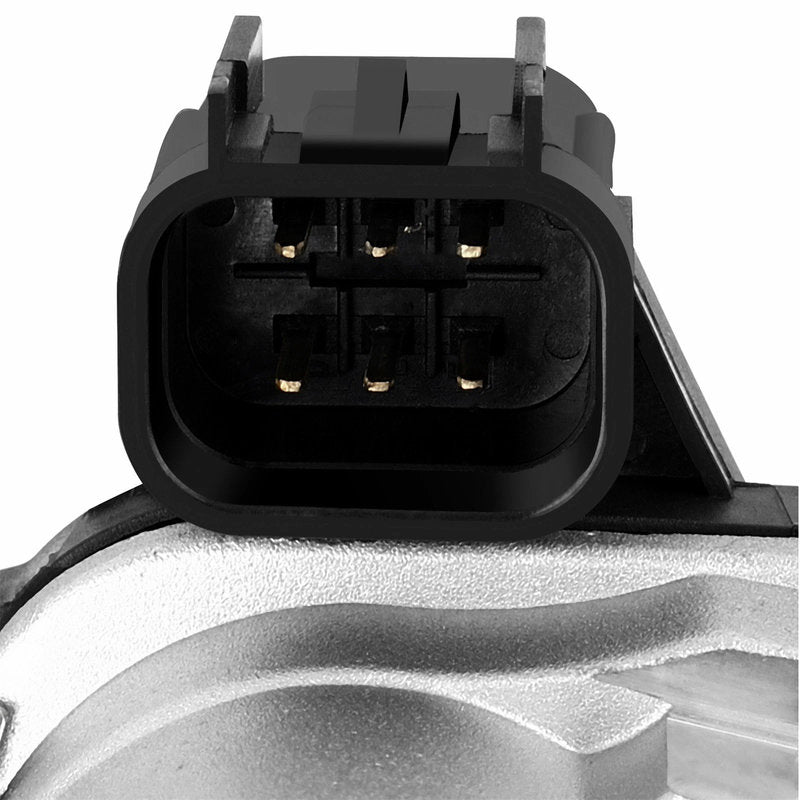

12616994,12609009, or12604075. - Verify the connector has 6 pins (rectangular blade terminal type, GM standard for this generation).

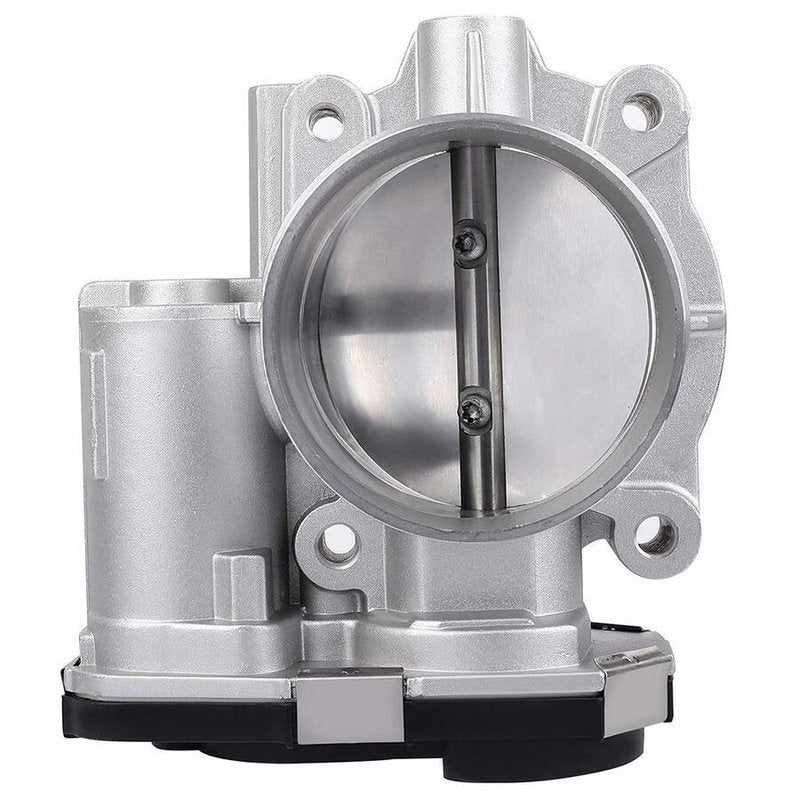

- Measure or confirm the throttle bore diameter is 72mm.

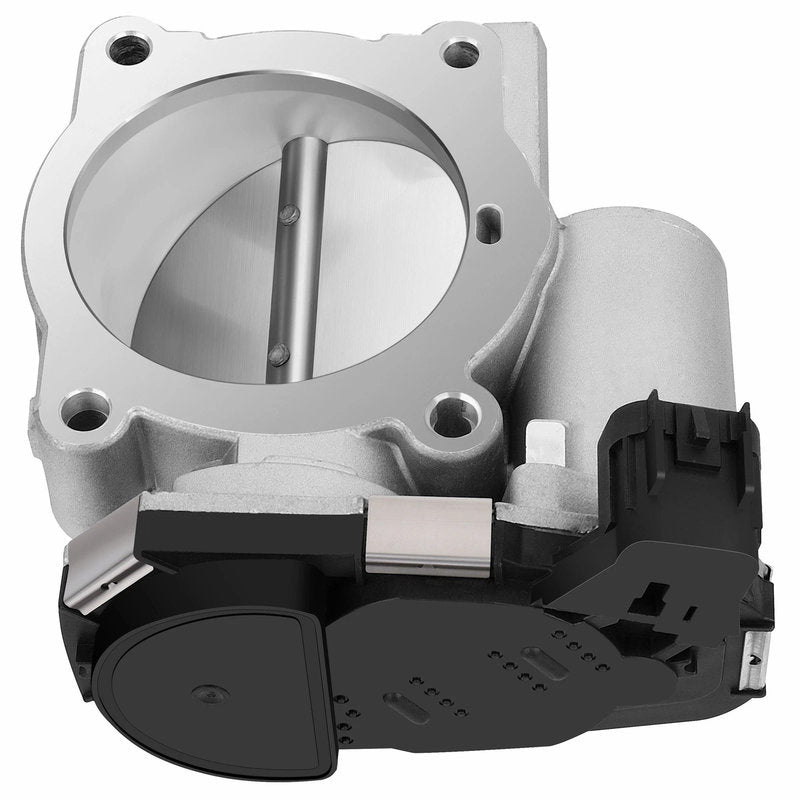

- Check the mounting bolt pattern (4 bolts) and air intake duct connection match the product photos.
- Note that a new mounting gasket is not included and must be purchased separately.
- Contact us with your VIN or a photo of your original part if unsure.
| Parameter | Specification |
|---|---|
| OE Numbers |
12616994 / 12609009 / 12604075 / S20018 / F00H600073 / 2173103 / 025623501109 / TB1044
|
| Product Type | Electronic Throttle Body (ETB) / Drive-by-Wire |
| Bore Diameter | 72 mm (2.83 in) |
| Connector Type | 6-Pin Rectangular / Blade Terminal (GM standard) |
| Mount Holes | 4 |
| Housing Material | Die-cast Aluminum Alloy + Anti-corrosion Surface Treatment |

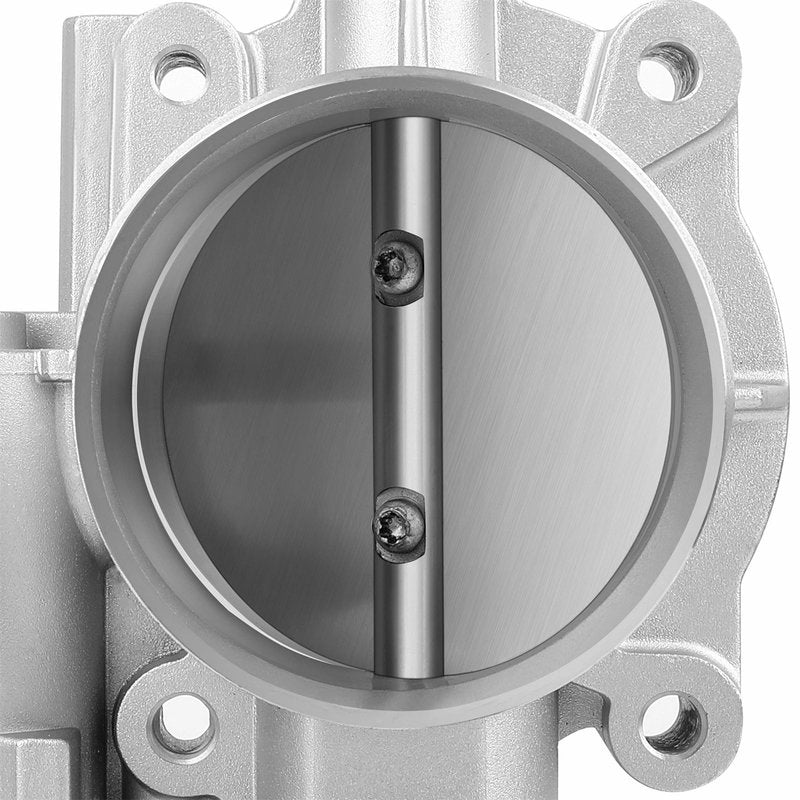

| Butterfly Valve | Stainless Steel |
| Seal Material | Oil-resistant Fluorine Rubber (Viton) |
| TPS | Integrated (Dual Redundant) |
| Voltage | 12V |
| Fuel Type | Petrol / Gasoline (Naturally Aspirated) |
| Engine Family | GM High Feature V6 (LF1 / LLT / LY7) |
| Gasket Included | No (purchase separately) |
| Warranty | 12 months (general) / 24 months (motor & sensors) |
| Make | Model / Chassis | Engine | Years | Trim / Notes |
|---|---|---|---|---|
| Cadillac | CTS | 3.0L V6 (LF1) / 3.6L V6 (LLT) | 2008 – 2013 | Base, Luxury, Performance, Premium |
| Cadillac | SRX | 3.0L V6 (LF1) | 2010 – 2016 | Base, Luxury, Performance, Premium |
| Cadillac | STS | 3.6L V6 (LY7) | 2005 – 2009 | Base, Luxury, Performance |
| Buick | LaCrosse | 3.0L V6 (LF1) | 2010 – 2011 | CX, CXL |
| Chevrolet | Camaro | 3.6L V6 (LLT) | 2010 – 2011 | LS, LT |
| Chevrolet | Equinox | 3.0L V6 (LF1) | 2010 – 2011 | LT, LTZ |
| GMC | Terrain | 3.0L V6 (LF1) | 2010 – 2011 | SLE, SLT |
The LOREADA 72mm throttle body for GM 3.0L/3.6L High Feature V6 engines is a precision-engineered direct OEM replacement covering Cadillac CTS, SRX, and STS; Buick LaCrosse; Chevrolet Camaro and Equinox; and GMC Terrain. Built to strict GM OE standards with LF1, LLT, and LY7 engine calibration, it delivers factory-correct airflow, smooth power delivery, and stable idle. GM OE number 12616994 supersedes 12609009 and 12604075 — all are interchangeable. 100% new construction, not remanufactured, no core charge required.
- ✅ OE Fitment – Direct replacement, no wiring modification required. Matches GM OE numbers 12616994, 12609009, 12604075.
- ✅ 72mm Precision Bore – Factory-correct diameter for optimal airflow on 3.0L and 3.6L V6 engines.
- ✅ GM High Feature V6 Optimised – Engineered for Cadillac CTS/SRX/STS, Buick LaCrosse, Chevrolet Camaro/Equinox, GMC Terrain with LF1/LLT/LY7 engines.
- ✅ Plug & Play – Exact match in dimensions, 6-pin connector, and 4-bolt mounting pattern. Uses factory gasket (sold separately).
- ✅ Fast Response – Motor response time ≤ 50 ms for precise throttle control and smooth acceleration.
- ✅ Dual Redundant TPS – Prevents idle fluctuations, hunting, and false error codes (P0638, P0697, P2100, P2119, P2135, P1516).
- ✅ 100% Factory Tested – Thermal cycling, airtightness, and full-stroke angle calibration verified.
- ✅ ISO 16750 Compliant – Meets environmental standards for automotive electrical/electronic equipment.
- ✅ 100% New – Complete assembly with integrated TPS – not remanufactured, no core charge.
| Type | Part Number(s) |
|---|---|
| GM Main |
12616994, 12609009, 12604075
|
| Aftermarket Cross |
S20018 (Standard), F00H600073 (Bosch), 2173103 (Dorman), 025623501109, TB1044
|
| Dorman Equivalent |
217-3103 – direct replacement with improved components |
| Other Compatible |
12694878, 4802121 (verify with original) |
IMPORTANT: After replacing the ETB on GM 3.0L/3.6L High Feature engines, a throttle self-learning / idle relearn procedure is REQUIRED. Failure to perform the relearn may result in unstable idle or check engine lights. If issues persist, use a professional diagnostic scanner (GM MDI / Tech2) to perform a “Throttle Body Relearn” or “Idle Learn”.
| Step | Action |
|---|---|
| 1 | Disconnect the negative battery terminal for 5–10 minutes (clears old learned values). |
| 2 | Remove the air intake duct and disconnect the electrical connector (6-pin). |
| 3 | Remove any coolant hoses attached to the throttle body (if equipped with throttle body heating). |
| 4 | Remove the four mounting bolts and old throttle body. |
| 5 | Discard the old gasket and clean the mating surface on the intake manifold. |
| 6 | Install a new gasket (strongly recommended – sold separately). |
| 7 | Install the new throttle body. Torque bolts to 8–10 Nm (6–7 lb-ft). |
| 8 | Reconnect coolant hoses (if equipped), electrical connector, and air intake duct. |
| 9 | Reconnect the battery. |
| 10 | Turn ignition ON (do not start engine) and wait 10 seconds. |
| 11 | Turn ignition OFF for 10 seconds. |
| 12 | Start the engine and let it idle for 5 minutes (do not touch accelerator). |
| 13 | Turn engine off for 30 seconds, then restart and drive normally. The ECU will complete adaptation automatically. |
- Pre-installation check: Inspect the throttle body for any defects. Verify the OE number and connector type (6-pin) before installation.
- Gasket requirement: A new mounting gasket is strongly recommended — gasket not included. A damaged or reused gasket may cause rough idle or check engine lights.
- Relearn requirement: A throttle relearn calibration procedure is mandatory after installation. Failure to perform the relearn may result in unstable idle or drivability issues.
- Packing List: Electronic Throttle Body Unit (72mm bore, complete assembly with TPS and motor) × 1; Warranty Card × 1. (Gasket and installation hardware not included)
