Product Information
Explore detailed specifications and features
| Item | Detail |
|---|---|

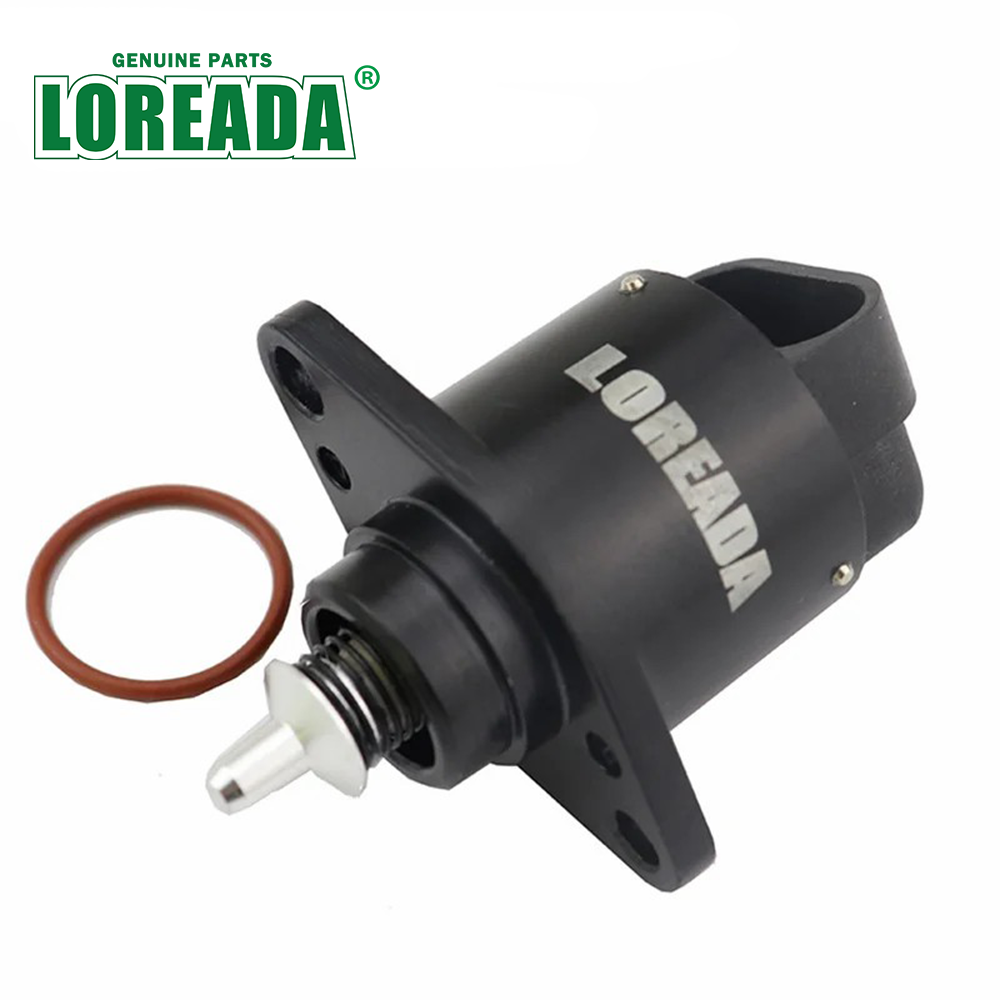

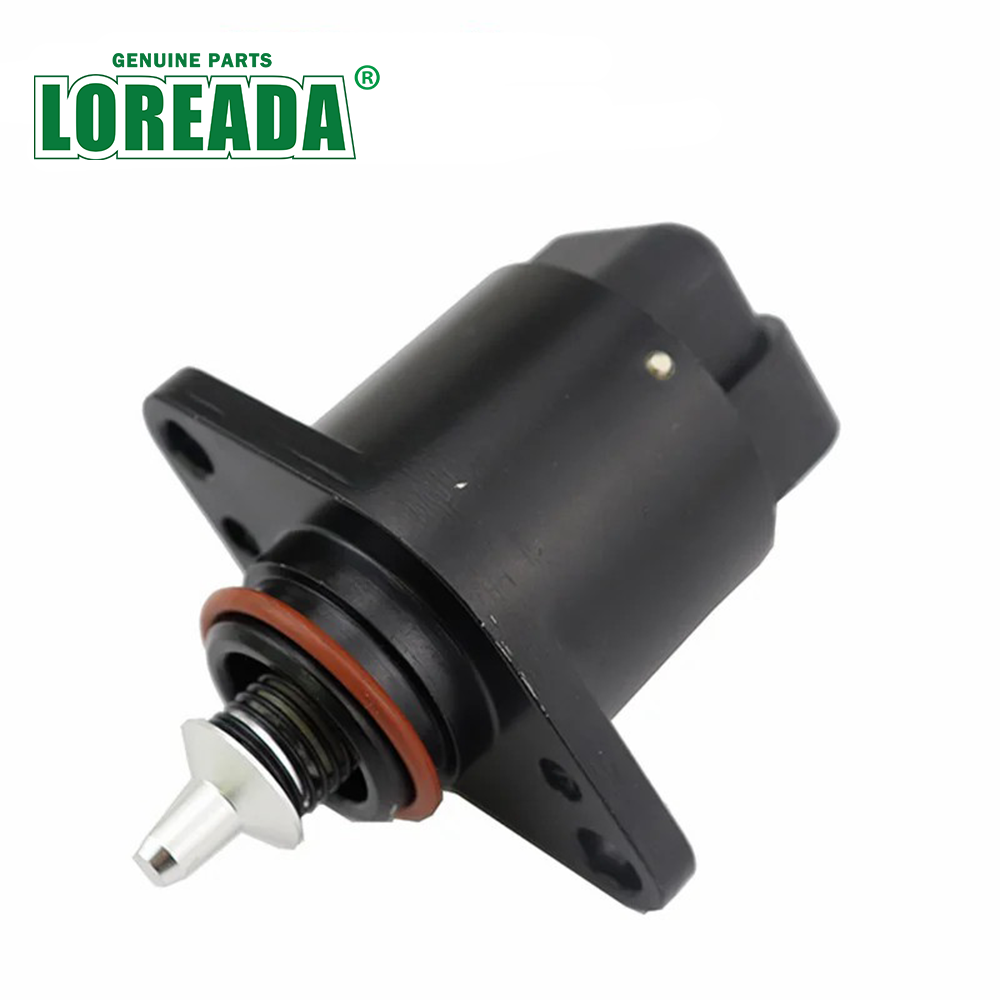

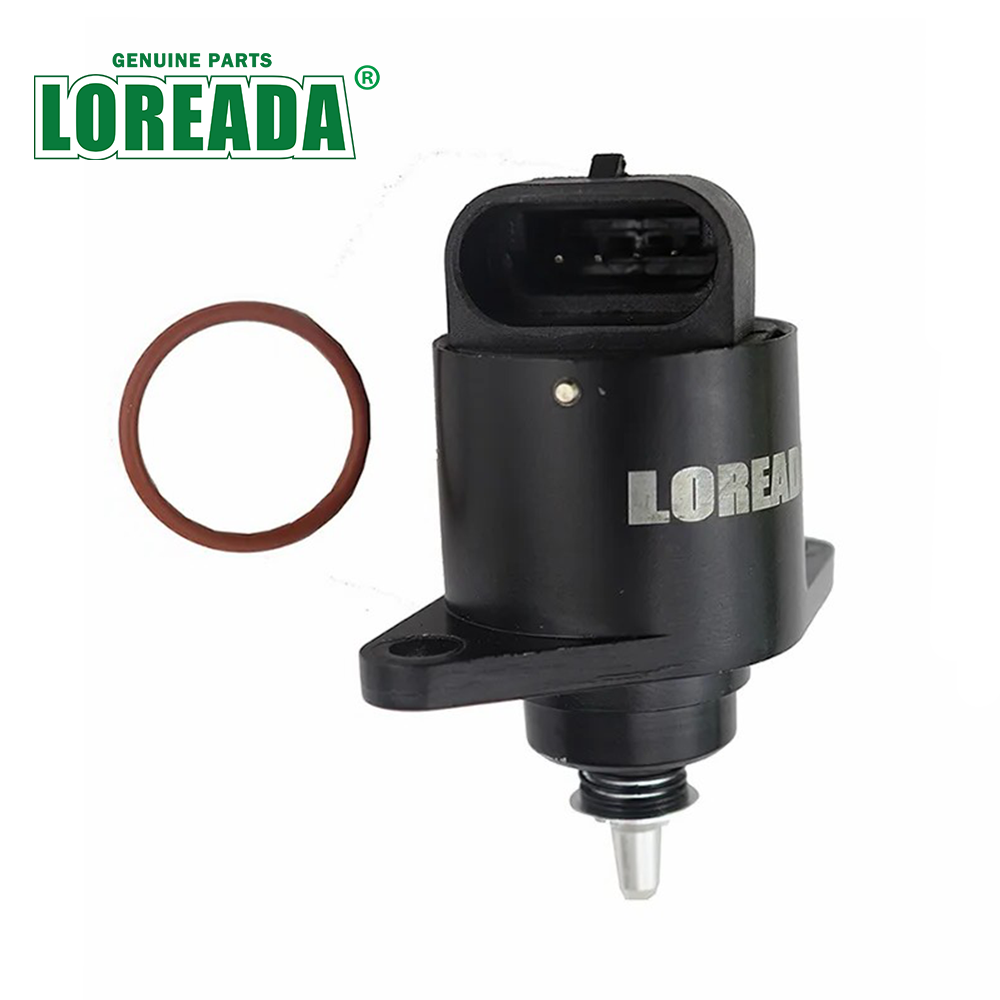

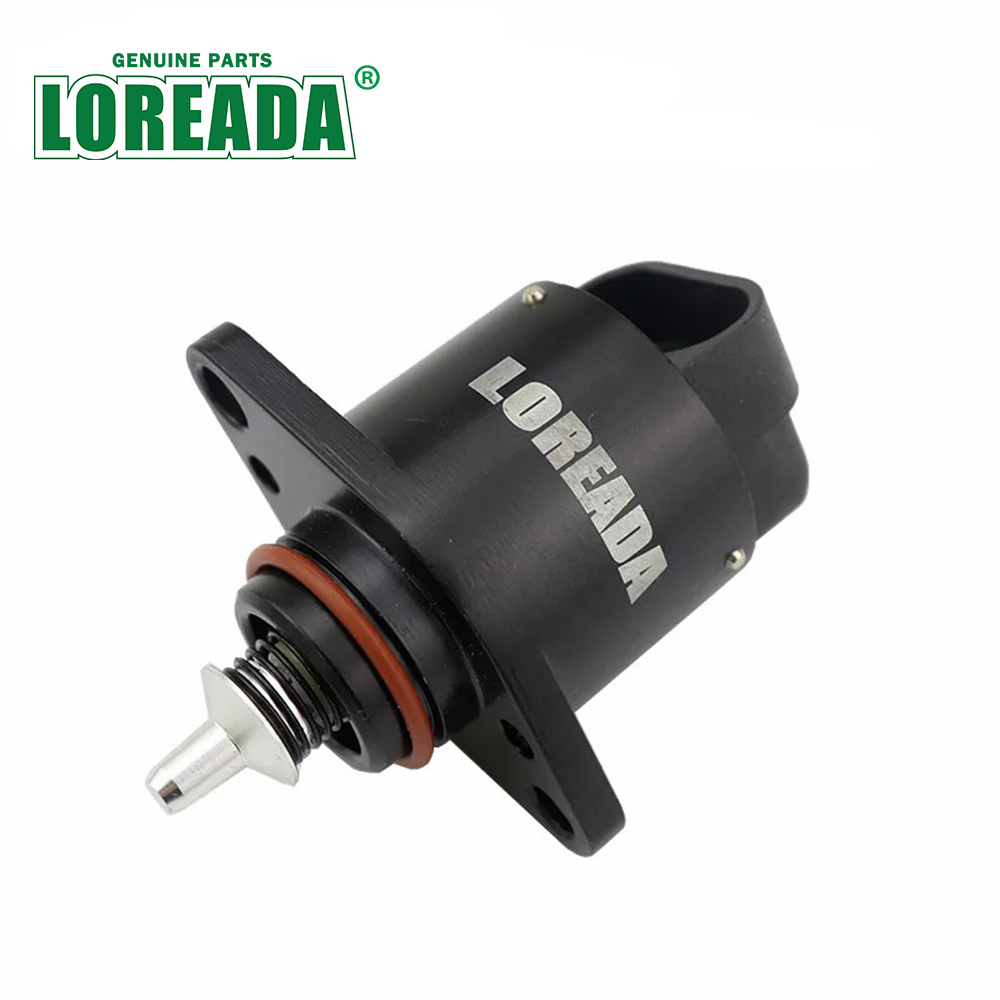

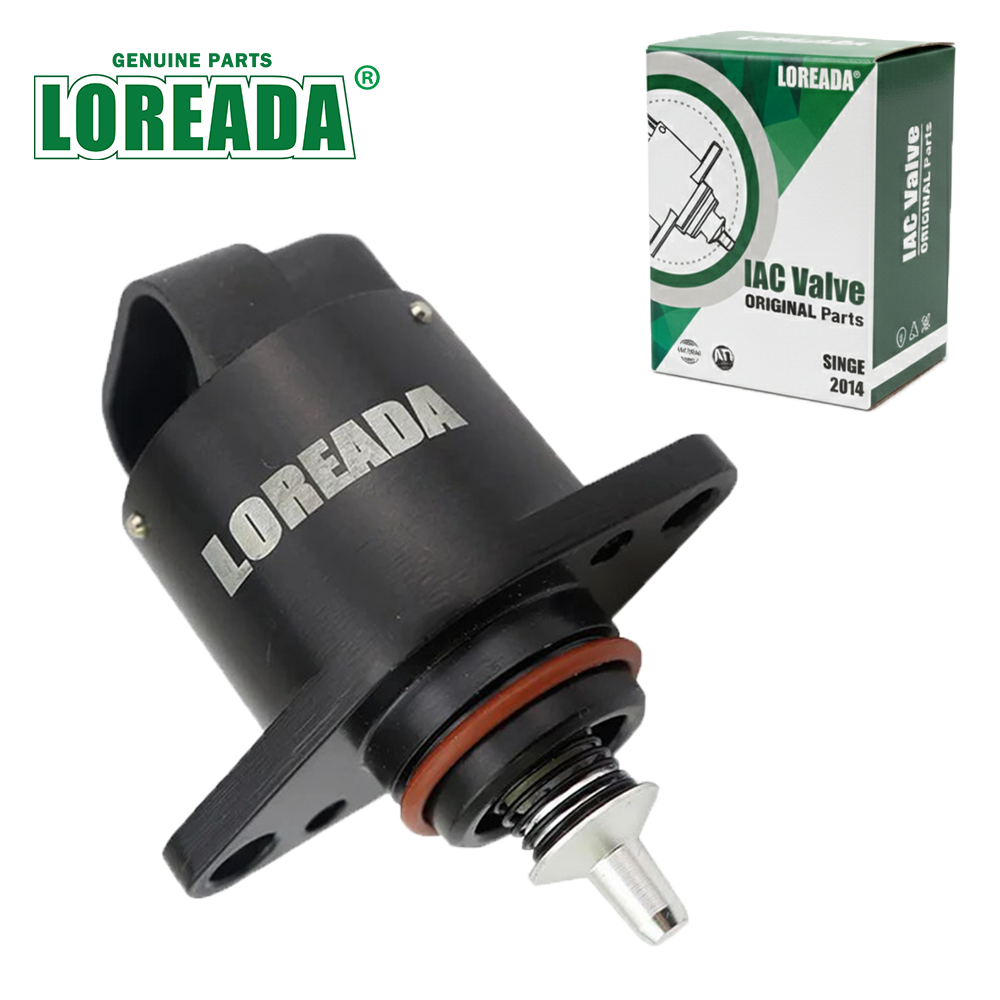

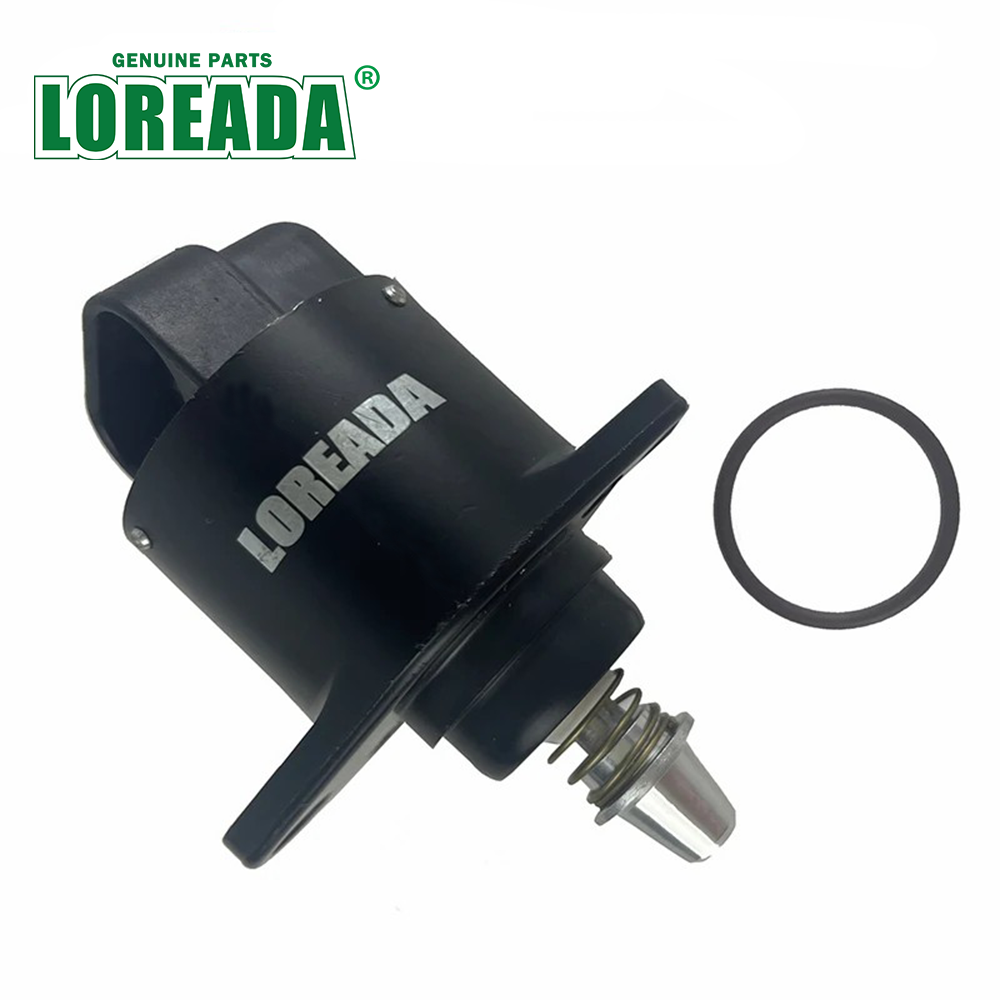

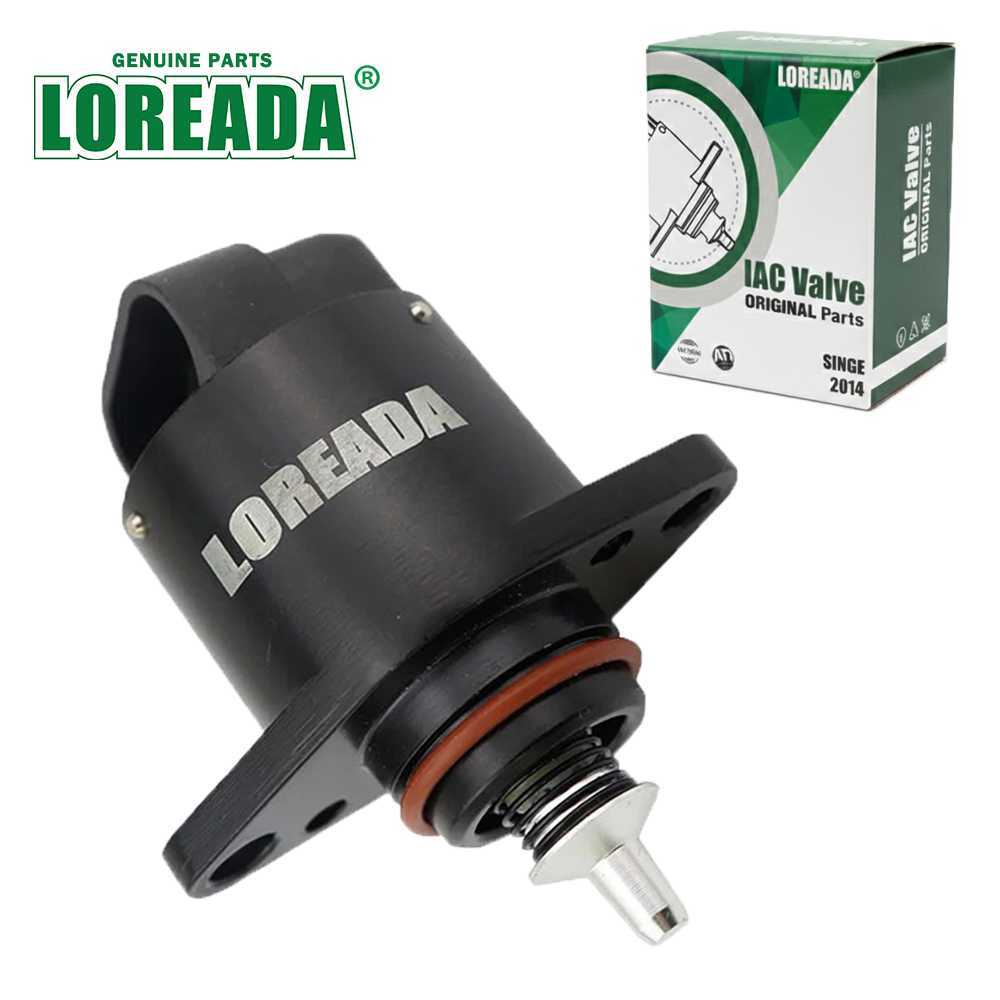

| Product Name | Idle Air Control Valve (IAC) Stepper Motor |
| Model | LRD-26178 |
| OE Numbers | 26178 / 24026 |
| Connector Angle | 146° |
| Wiring Standard | US / NEMA Style |
| Seal | External O-Ring |
| Warranty | 12 / 24 Months |
- Motorcycle 125cc / 150cc / 200cc (verify OE number before ordering)
LOREADA LRD-26178 Idle Air Control Valve (IAC) Stepper Motor is a direct OEM replacement for 125cc, 150cc, and 200cc motorcycles. Engineered to OEM specifications for stable idle control and long-term reliability.
- OEM-Grade Quality – Direct replacement, plug-and-play installation.
- US / NEMA Standard – 146° connector angle, US standard motor housing dimensions.
- External O-Ring Seal – Ensures airtight fitment and prevents vacuum leaks.
- 100% Factory Tested – Full stroke and response calibration before shipment.
| Specification | Value |
|---|---|
| OE Ref | 26178 / 24026 |
| Connector | 146°, US / NEMA Style |
| Seal | External O-Ring |
| Warranty | 12 / 24 Months |
| Rated Voltage | 12 VDC |
| Operating Voltage Range | 7.5–14 VDC |
| Coil Resistance (@27°C) | 53 Ω ± 5.3 Ω |
| Minimum Resistance (@-40°C) | 35 Ω |
| Coil Inductance (@25°C, 1kHz) | 33.5 mH ± 6 mH |
| Step Size | 0.04167 mm/step |
| Maximum Travel | 8.5 mm (204 Steps) |
| Operating Temperature | -40°C to +125°C (150°C Peak) |
| Storage Temperature | -40°C Minimum |
| Weight | 110 g |
| Flange Mounting Type | Symmetric / Asymmetric |
| Resonant Frequency Range | 70–120 pps |
Confirm your vehicle model matches the listing.
Compare product photos with your original part.

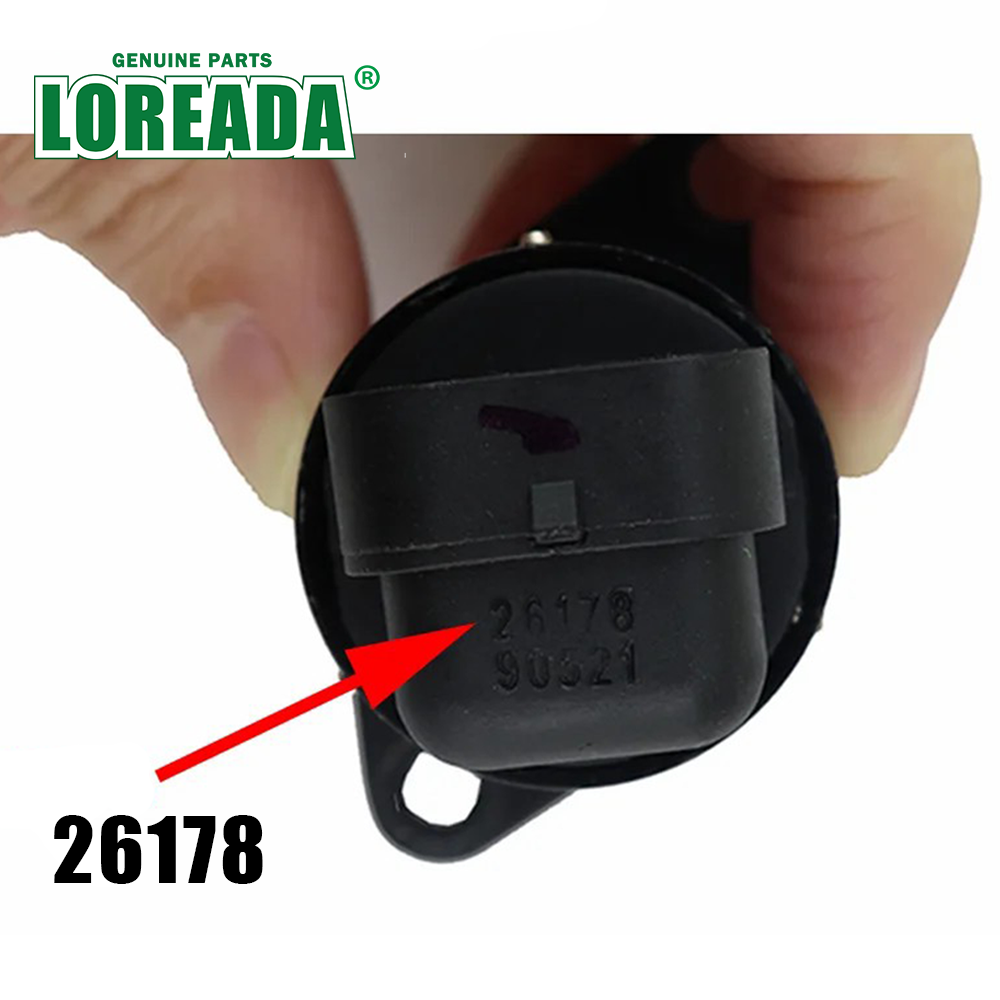

Locate the original part number (OE) on your component.
Match this number with ours. Contact us with your part number if unsure.
