Product Information
Explore detailed specifications and features
| Item | Detail |
|---|---|

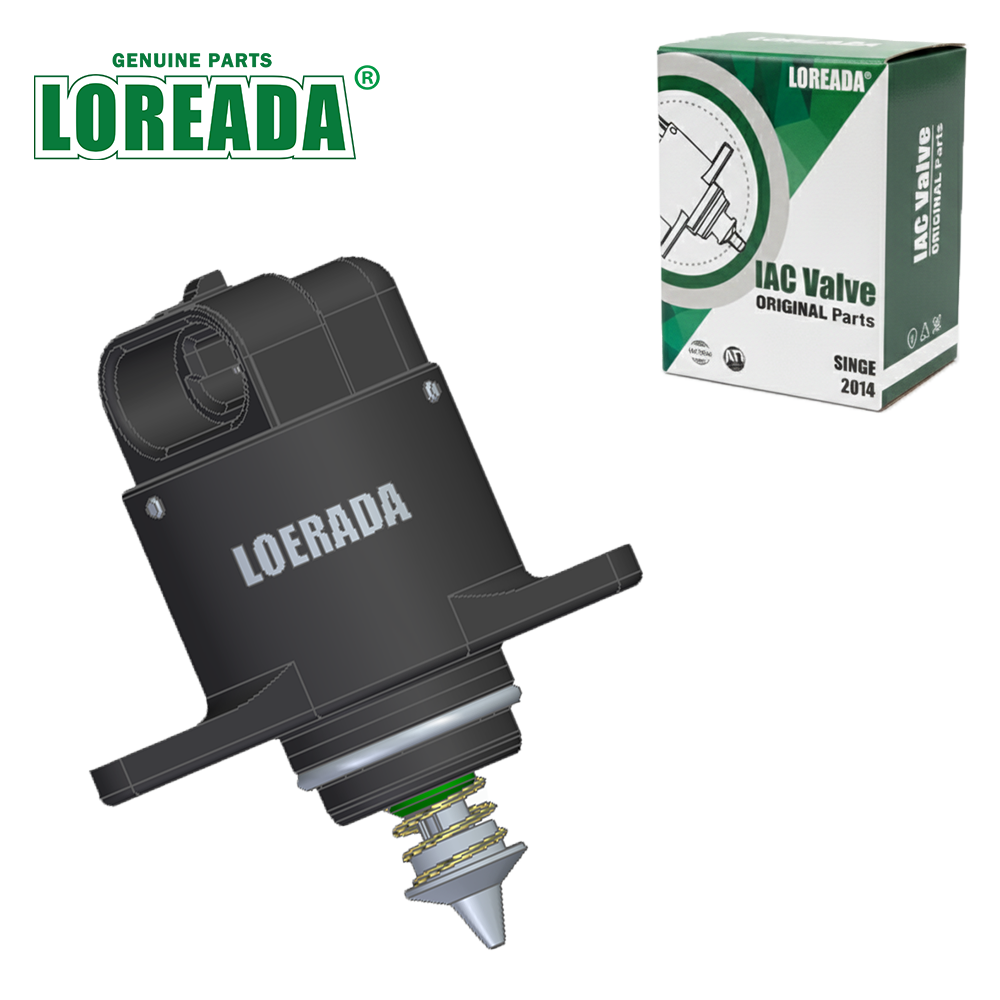

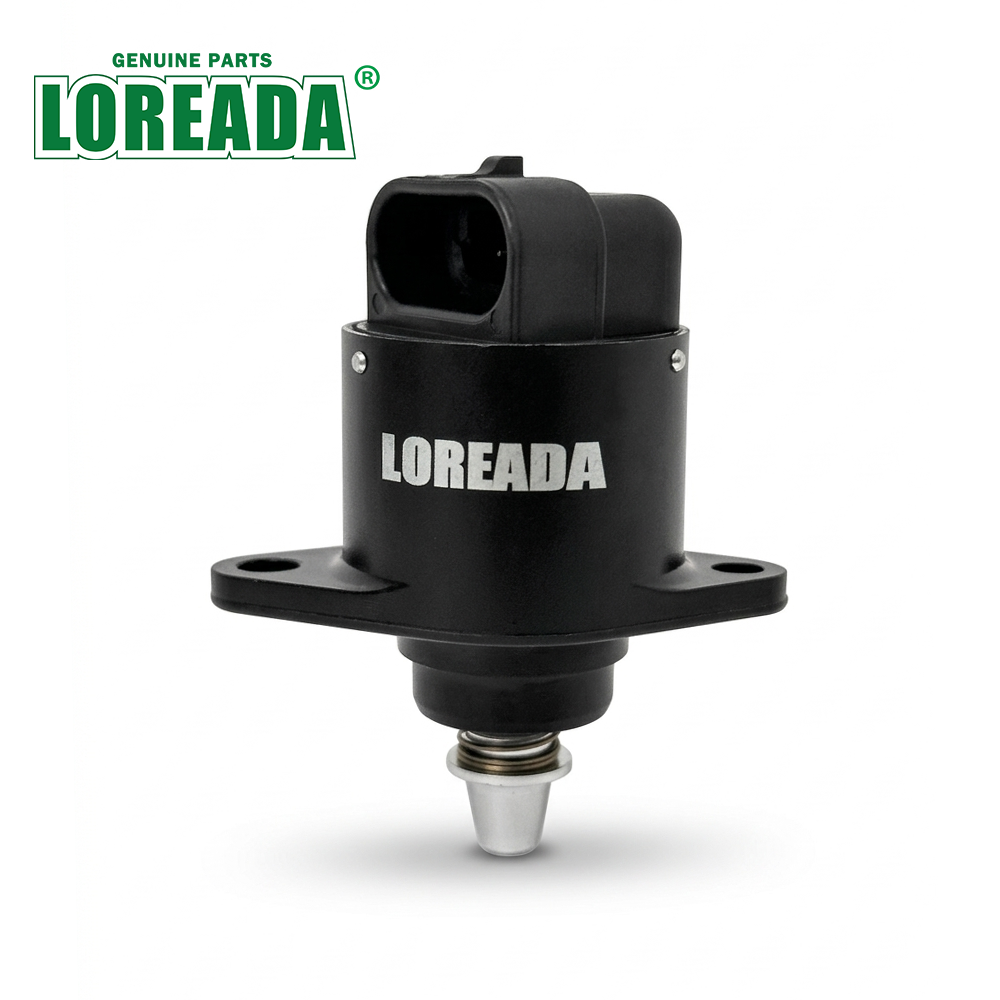

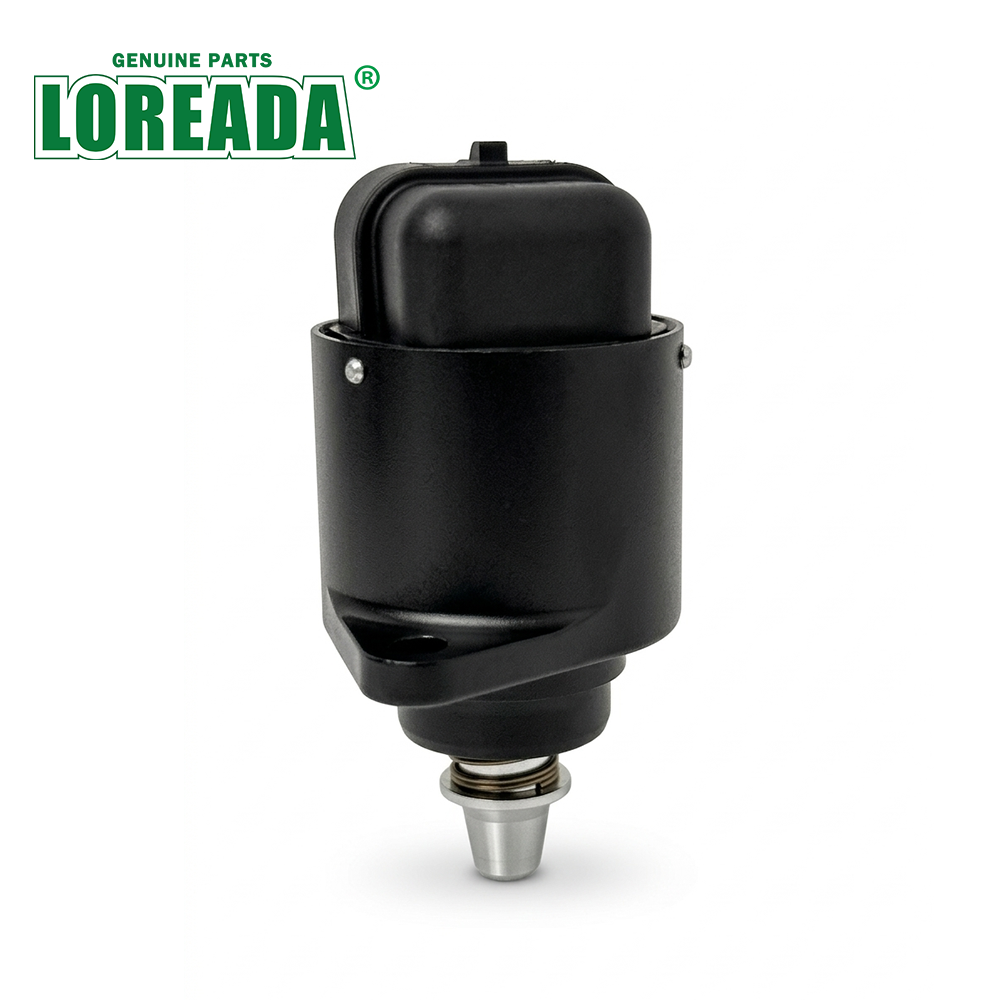

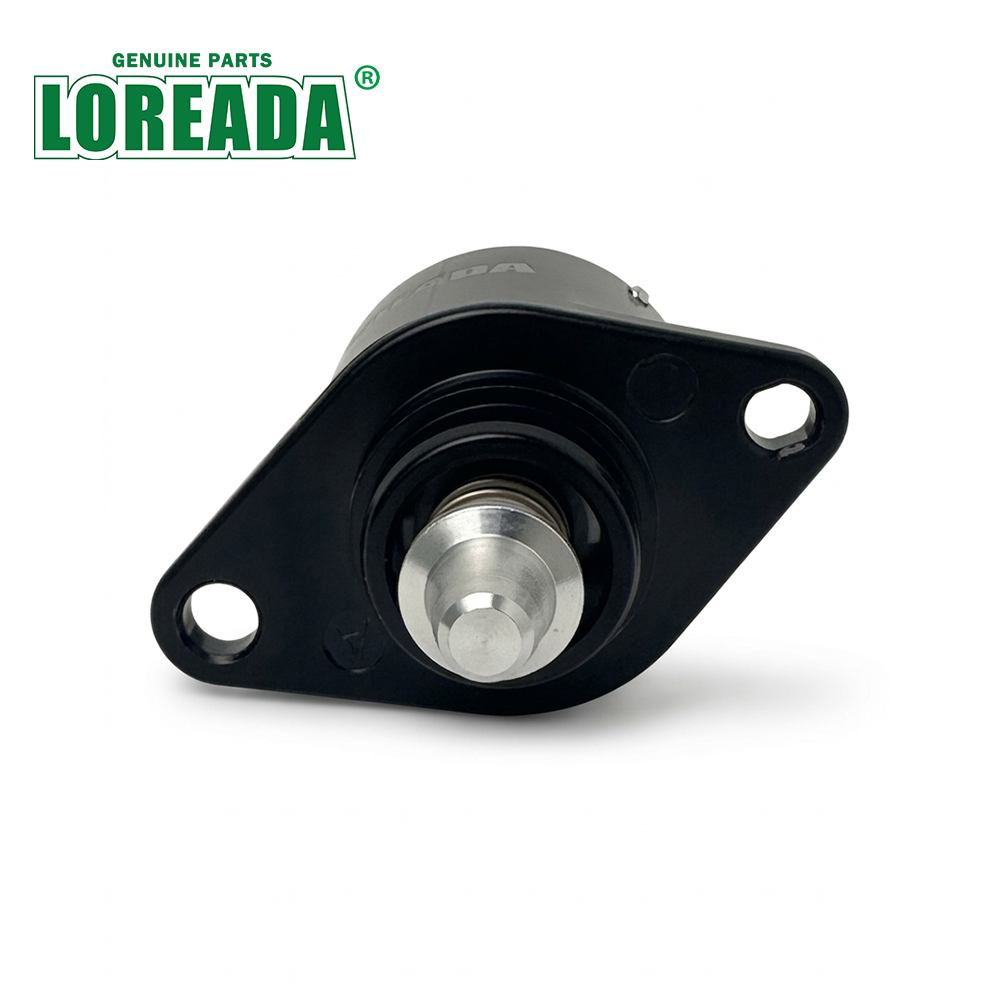

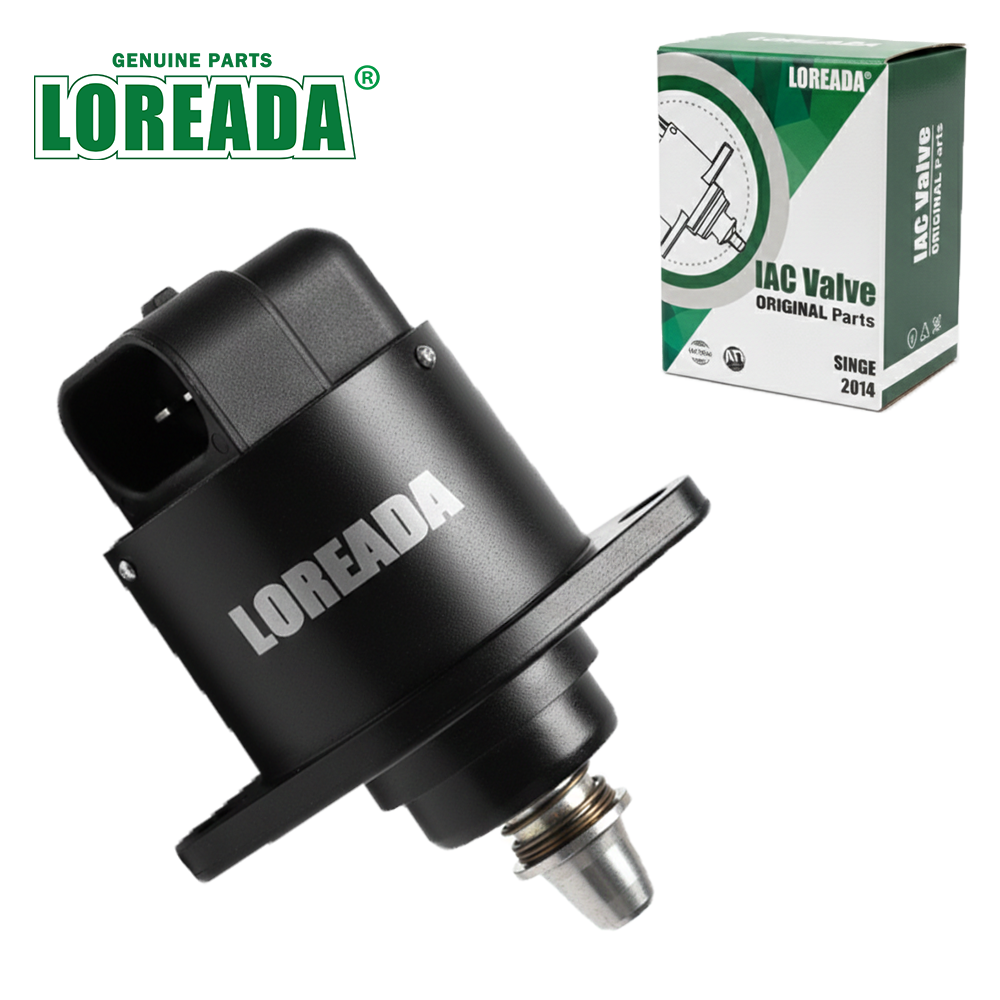

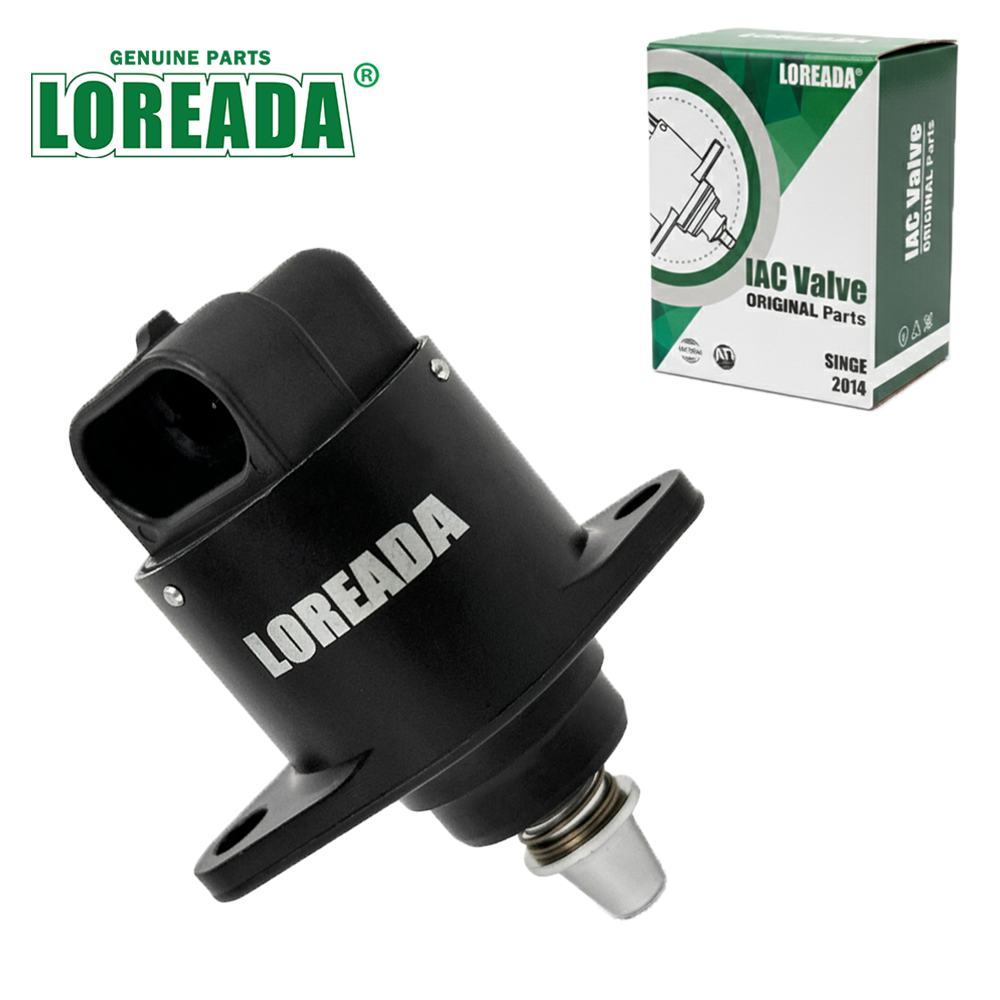

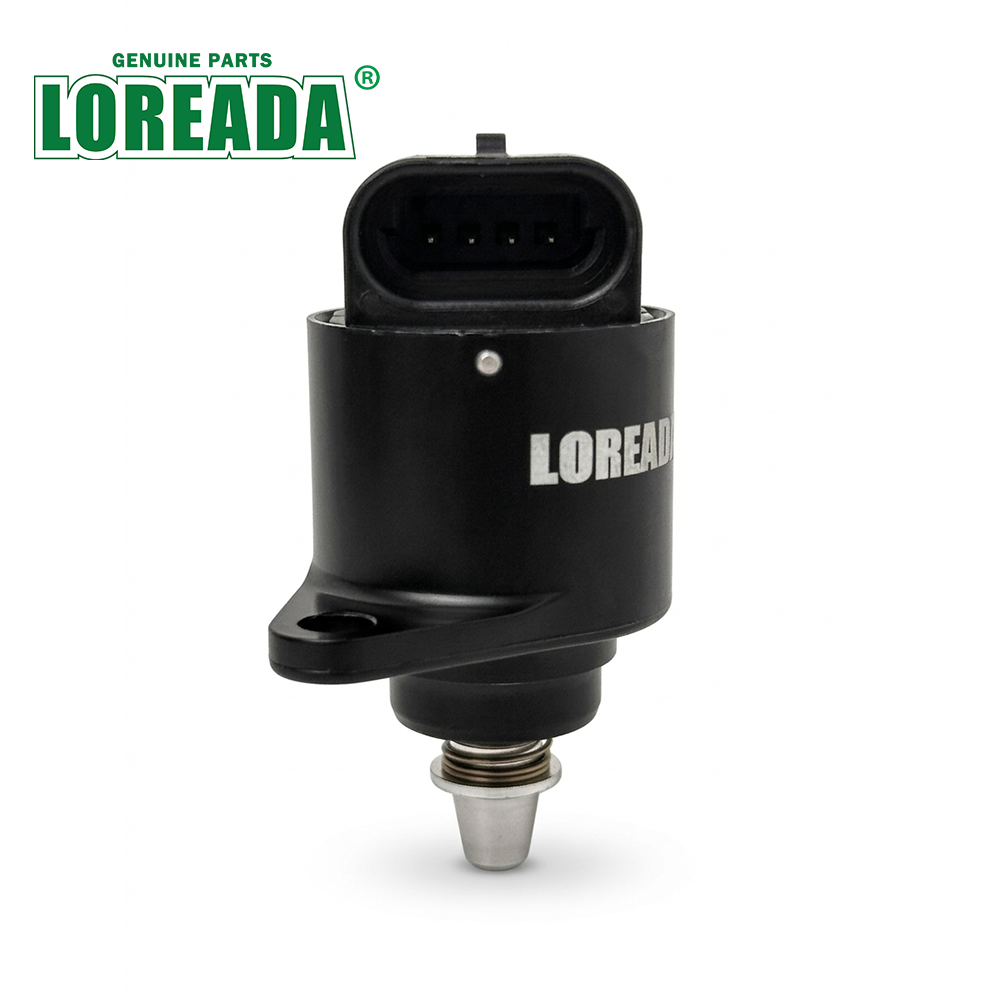

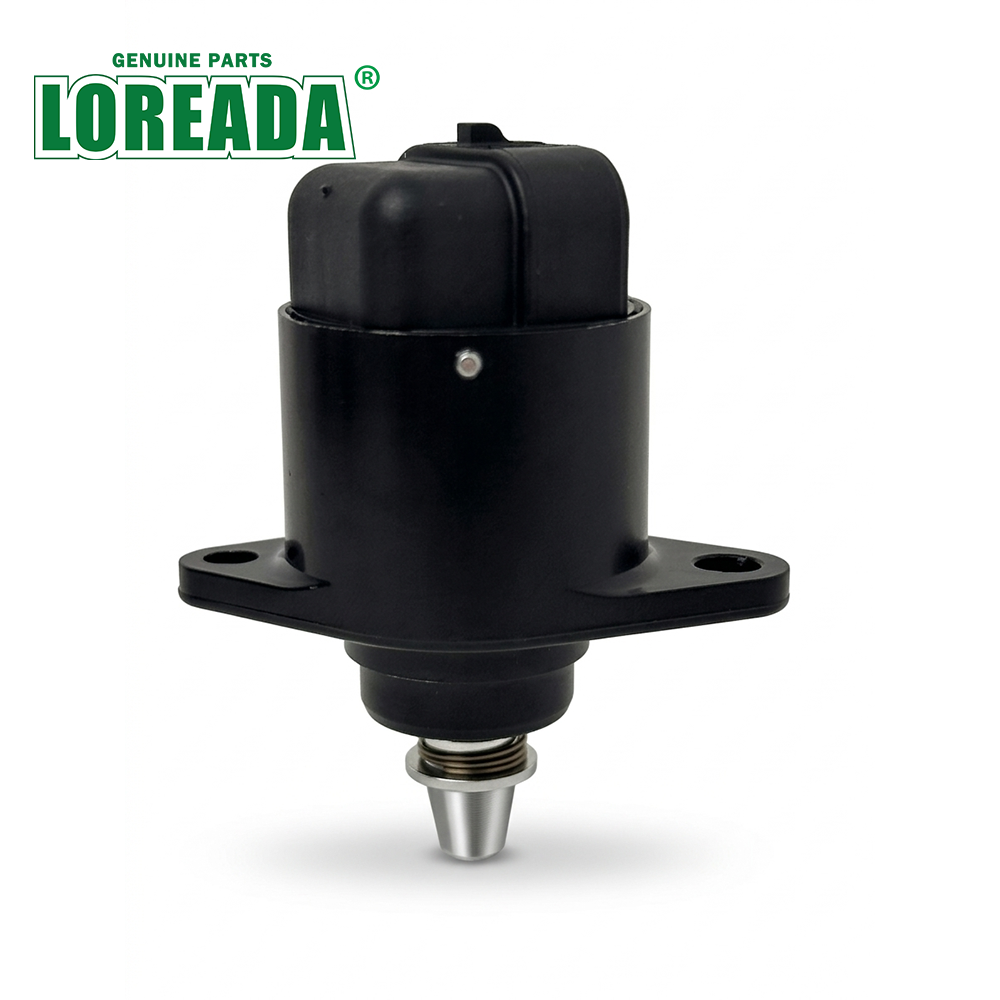

| Product Name | Idle Air Control Valve (IAC) Stepper Motor |
| Model | LRD-C007B-1000-00 |
| OE Numbers | 26179 / 09026 / W3169 |
| Connector Angle | 146° |
| Wiring Standard | US / NEMA Style |
| Seal | External O-Ring |
| Warranty | 12 / 24 Months |
- Linhai 400
- Honda CRX II ED/EE (1.6L 16V) – 1987–1992
- Honda Civic IV Hatchback EC/ED/EE (1.5L 16V ED6) – 1987–1993
- Honda Civic IV Saloon ED (1.5L 16V ED3) – 1987–1993
- Honda Civic II Shuttle EE (1.6L 16V 4WD EE4) – 1988–1995
LOREADA LRD-C007B IAC Stepper Motor is a direct OEM replacement for Linhai 400 and Honda Civic/CRX with 1.5L–1.6L engines. Engineered to OEM specifications for stable idle control and long-term reliability.
- OEM-Grade Quality – Direct replacement, plug-and-play installation.
- US / NEMA Standard – 146° connector angle, US standard motor housing dimensions.
- External O-Ring Seal – Ensures airtight fitment and prevents vacuum leaks.
- 100% Factory Tested – Full stroke and response calibration before shipment.
| Specification | Value |
|---|---|
| OE Ref | 26179 / 09026 / W3169 |
| Connector | 146°, US / NEMA Style |
| Seal | External O-Ring |
| Warranty | 12 / 24 Months |
| Rated Voltage | 12 VDC |
| Operating Voltage Range | 7.5–14 VDC |
| Coil Resistance (@27°C) | 53 Ω ± 5.3 Ω |
| Minimum Resistance (@-40°C) | 35 Ω |
| Coil Inductance (@25°C, 1kHz) | 33.5 mH ± 6 mH |
| Step Size | 0.04167 mm/step |
| Maximum Travel | 8.5 mm (204 Steps) |
| Operating Temperature | -40°C to +125°C (150°C Peak) |
| Storage Temperature | -40°C Minimum |
| Weight | 110 g |
| Flange Mounting Type | Symmetric / Asymmetric |
| Resonant Frequency Range | 70–120 pps |
Confirm your vehicle model matches the listing.
Compare product photos with your original part.

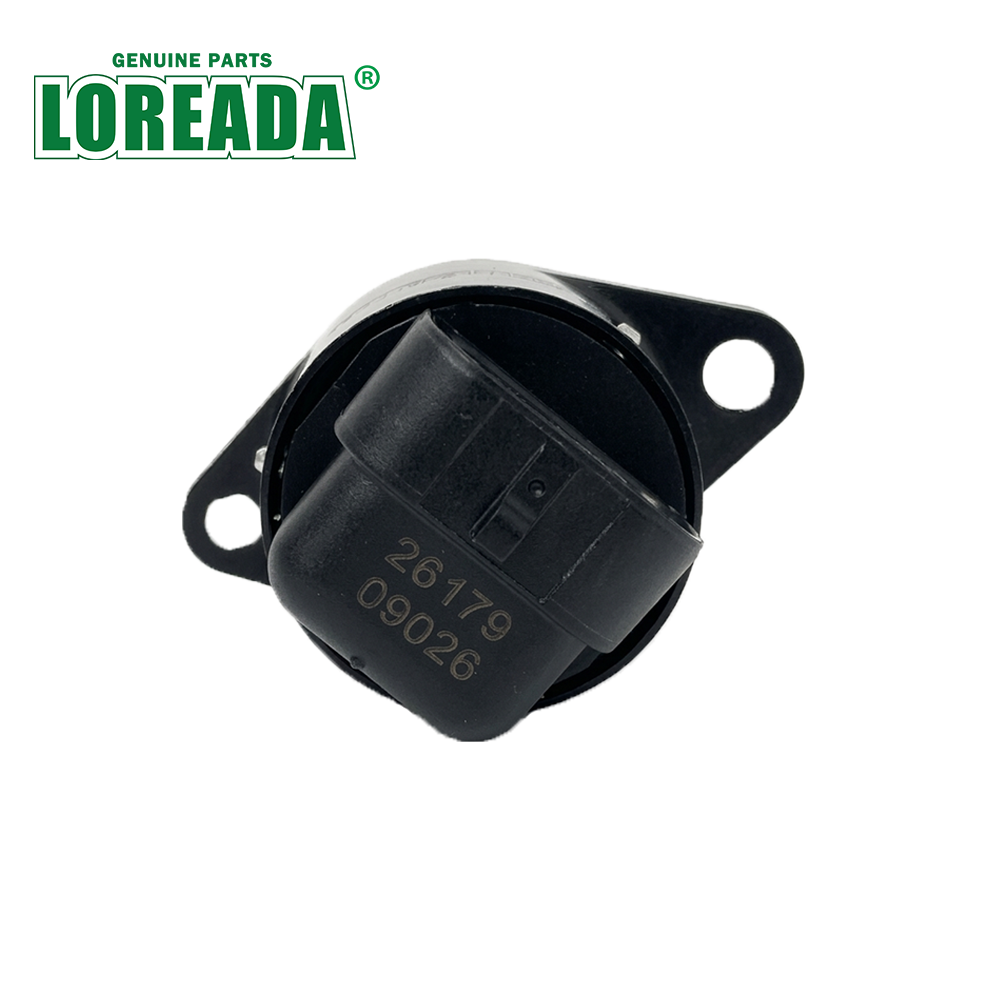

Locate the original part number (OE) on your component.
Match this number with ours. Contact us with your part number if unsure.
Our price includes only the product and standard shipping. Buyers are responsible for all additional charges (e.g., customs duties, import fees, VAT, insurance). Customs policies vary by country – please check your local import regulations before ordering. If customs clearance fails due to the buyer's reasons, the buyer will be fully responsible, and refunds will not be provided.
