L3K913640A L35M-13-640A L3K9-13-640 L3K9-13-640A Throttle Body Air Control Valve IAC Valve Stepper Motor For MAZDA OEM Quality
L3K913640A L35M-13-640A L3K9-13-640 L3K9-13-640A Throttle Body Air Control Valve IAC Valve Stepper Motor For MAZDA OEM Quality
L3K913640A L35M-13-640A L3K9-13-640 L3K9-13-640A Throttle Body Air Control Valve IAC Valve Stepper Motor For MAZDA OEM Quality
L3K913640A L35M-13-640A L3K9-13-640 L3K9-13-640A Throttle Body Air Control Valve IAC Valve Stepper Motor For MAZDA OEM Quality
L3K913640A L35M-13-640A L3K9-13-640 L3K9-13-640A Throttle Body Air Control Valve IAC Valve Stepper Motor For MAZDA OEM Quality
L3K913640A L35M-13-640A L3K9-13-640 L3K9-13-640A Throttle Body Air Control Valve IAC Valve Stepper Motor For MAZDA OEM Quality
L3K913640A L35M-13-640A L3K9-13-640 L3K9-13-640A Throttle Body Air Control Valve IAC Valve Stepper Motor For MAZDA OEM Quality
L3K913640A L35M-13-640A L3K9-13-640 L3K9-13-640A Throttle Body Air Control Valve IAC Valve Stepper Motor For MAZDA OEM Quality

Throttle Body for Mazda | OE L3K913640A L3K9-13-640A L35M-13-640A | LOREADA
  • American Express
  • Diners Club
  • Discover
  • JCB
  • Maestro
  • Mastercard
  • Visa
  • Visa Electron
$82.15 USD
$82.15 USD
In stock

Customize your product

There are three ways to contact staff for customization:Click on the bottom right corner to contact store customer service Add WhatsApp:+86156161182193. Join WhatsApp VIP group: https://chat.whatsapp.com/GekN9JFLM5YCKdFnVAhTDb

Vehicle Fitment – Compatible with select MAZDA models:

⚠️ Important: This throttle body is designed to fit various MAZDA vehicles. To ensure correct fitment, you must verify your original OE part number before ordering.

Please check your original throttle body for the OE number and compare it with our listing. Contact us if you are unsure.

OE Numbers:

L35M13640A / L35M13640 / L3K913640 / L3K913640A

Technical Specifications

Parameter Specification
Design 100% OEM specification – direct replacement
Installation Fit Exact match in dimensions, connector pinouts, and electrical parameters

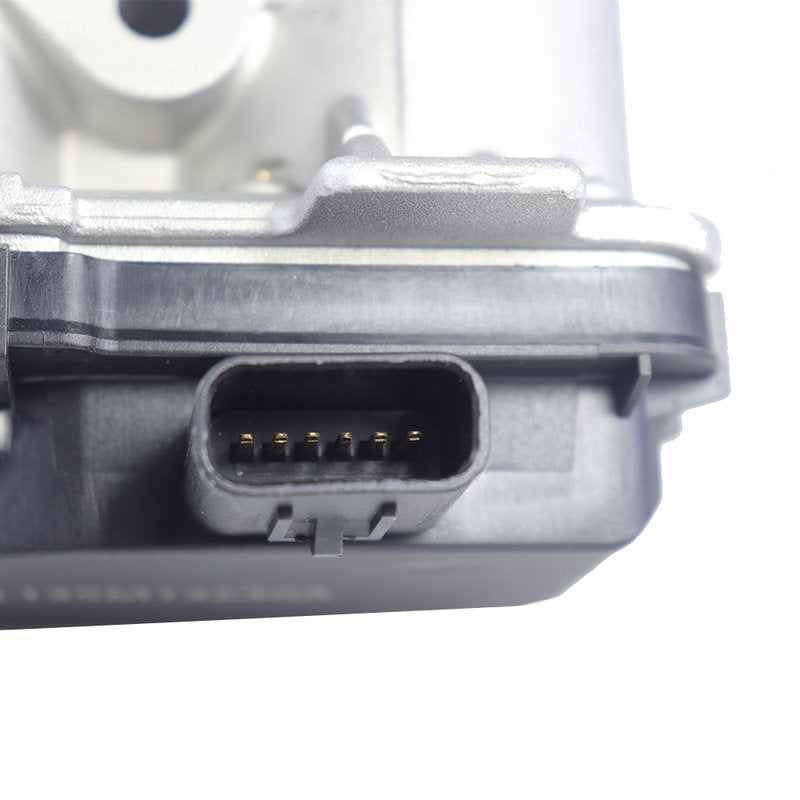

Connector Type 6-Pin Oval (varies by application – check your original)
Throttle Bore Diameter (varies – confirm with your original part)
Housing Material Die-cast Aluminum Alloy + Anti-corrosion Surface Treatment
Butterfly Valve Material Stainless Steel / Anodized Aluminum
Seal Material Oil-resistant Fluorine Rubber (Viton)
Warranty 12 months (general) / 24 months (motor & sensors)

ℹ️ If you are unsure about connector type or bore size, please contact us with your VIN or a photo of your original part.

Product Highlights

✅ OE Fitment – Developed to strict OEM standards. Direct replacement – no wiring or programming required for most models (see adaptation notes).
✅ High Performance – Motor response time ≤ 50 ms for precise intake control and improved throttle sensitivity.
✅ Reliability – Built-in dual redundant position sensors prevent idle fluctuations, hunting, and false error codes.
✅ Rigorous Testing – 100% factory-tested for thermal cycling, airtightness, and full-stroke angle calibration.
✅ Standard Compliance – Meets ISO 16750 environmental standards for automotive electrical/electronic equipment.

Common Symptoms of a Failing Throttle Body

  • Unstable idle, "hunting," or engine stalling

  • Acceleration lag or delayed throttle pedal response

  • Check Engine Light (CEL) – common DTCs: P0120, P0220, P2119, etc.

  • Cruise control malfunction or inoperability

Installation & Adaptation Tips

IMPORTANT: After replacing the Electronic Throttle Body (ETB), some vehicles require a throttle self-learning or idle relearn procedure.

Step Action
1 Disconnect the negative battery terminal for 5 minutes (clears old learned values).
2 Install the new throttle body, reconnect the plug and hoses.
3 Turn ignition ON (do not start engine) and wait 10 seconds.
4 Turn ignition OFF for 10 seconds.
5 Start the engine and let it idle until the cooling fan engages – do not press the accelerator during this time.

For MAZDA vehicles: The above procedure typically works. If issues persist, use a professional diagnostic scanner to perform a throttle body relearn.

Packing List

  • Electronic Throttle Body Unit × 1

  • Installation Gasket / Seal (if applicable) × 1

  • Warranty Card / Quality Certificate × 1

  • (Optional: Screws / Connector protector – may vary by batch)

How to Ensure You Get the Correct Part

  1. Locate the original part number (OE) on your existing throttle body.

  2. Compare product photos with your original part.

  3. Match your OE number with the one in our listing.

  4. Contact us with your VIN or part number if unsure.

After-Sales & Disclaimer

  • Pre-installation check: Inspect the exterior and connector pins for any deformation. Verify the OE number and plug shape before installation.

  • Compatibility: Due to variations in model years, engine types, and emission standards, if you are unsure of fitment, please provide the first 8 digits of your VIN or a photo of your original OE part for verification.

  • Warranty: This product carries a 12-month warranty against non-human damage. The motor and sensors are covered for 24 months.
